What is a Motorcycle Stability Issue?
A Motorcycle Stability Issue can be defined as a discomfort of the rider and/or passenger while the vehicle is in normal use. This discomfort may appear randomly or constantly and can be a cyclic shaking, shimmy, or wobble and can affect the complete motorcycle or only parts of it.
Shimmy or Wobble describes a rapid (4-10 Hz) oscillation of primarily just the front end (front wheel, fork, and handlebars) at low speeds (60-25 mph). It occurs mostly during deceleration and the amplitude of the oscillation is usually decreasing with the speed of the motorcycle.
Shimmy usually doesn’t lead to a loss of control but can get worse if a firm grip is not maintained on the handlebars.
Often Shimmy / Wobble is described as a weave, but Shimmy only affects the front end and disappears while accelerating to higher speeds – this is the opposite to the so-called weave, see next topic.
Contributing factors for (Low Speed) Shimmy / Wobble:

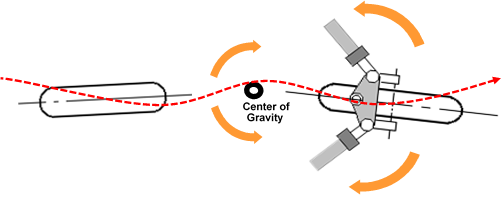

With the so-called High-Speed Weave, the steering system (with fork and front wheel) and the motorcycle rear (with frame, engine and rear wheel) oscillates phase-shifted around the steering axle. At the same time, the machine tilts around the vehicle's longitudinal and vertical axle. It manifests itself as an undulating movement of the vehicle, between 2 and 4 cycles per second (2-4 Hz), followed by a "S" shaped trajectory on the road.

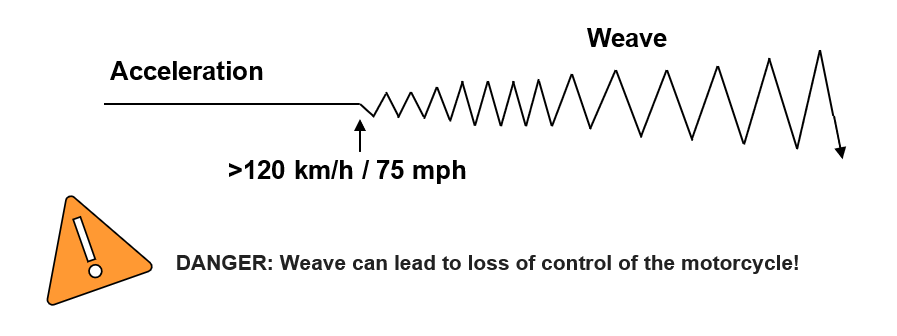

The phenomenon usually appears from 75 mph depending on the type of motorcycle and environmental conditions (wind can cause High-Speed Weave). The weave can start after a prolonged period of riding at a constant speed and becomes more severe as the speed increases. It can only be stopped by reducing the throttle, otherwise the amplitude increases with increased speed.
Contributing factors at the motorcycle for High-Speed Weave:

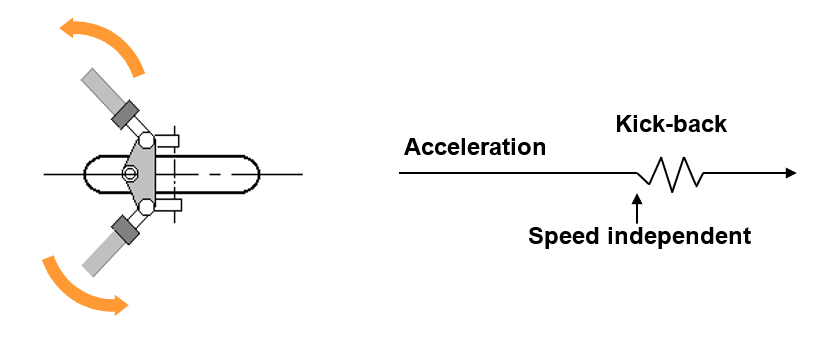

Kick-back is, when the fork, including front wheel and handlebar, jolts suddenly around the steering axle. This effect is independent from riding speed and is triggered when the front tyre lifts off and then returns at an angle, such as when accelerating strongly from bends or riding over a bump in a curve. Depending on the speed and the angle of contact, the front tyre suddenly builds up lateral forces, which are noticeable in the handlebars as light twitch or a strong jolt.
Usually, a kick-back includes one or two alternating movements of the handlebars around the steering axle and then the chassis calms down very quickly.
Contributing factors at the motorcycle for Kick-back:
A lack of directional stability describes various phenomena which do not usually repeat themselves cyclically or occur continuously, but which affect the riding characteristics of the motorcycle in certain riding situations, e.g.:
Contributing factors at the motorcycle for riding stability issues:

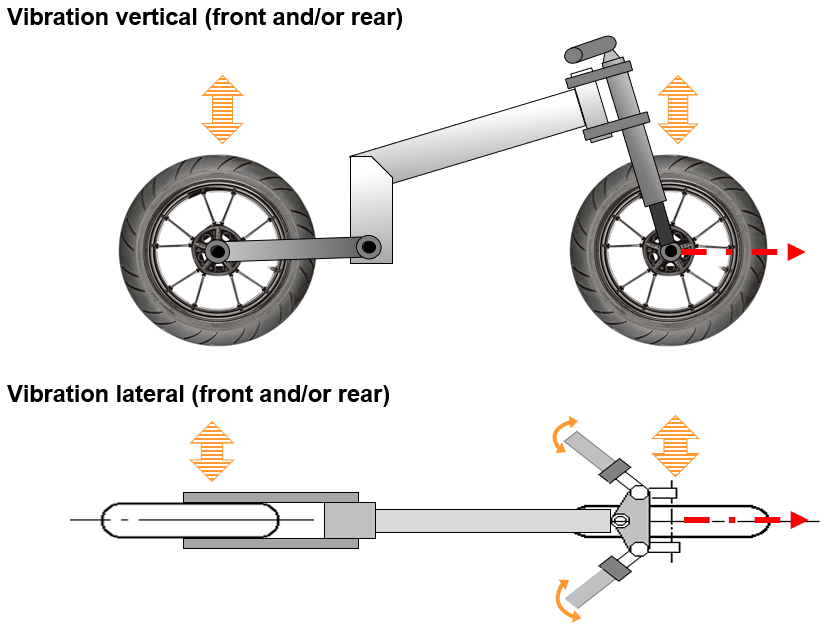

Vibration creates a discomfort while riding in various common riding conditions and can be noticed by a slightly shaking handlebar, seat or footrests. The movement direction caused by the vibration may be vertical, lateral or even mixed and can affect the front or rear part of the motorcycle.
Mostly, vibrations come from rotating or oscillating masses that are out of balance. It may also be caused by components and parts that are not fixed properly or have too much play. Therefore, poor maintenance of the motorcycle often leads to vibration problems.

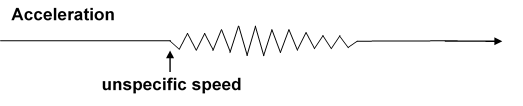

Vibrations usually occurs at an unspecific speed - depending on the natural frequency of the affected system - and its amplitude remains stable or decreases over rising velocity.
There are various conditions that can cause vehicle vibrations. Typical sources are:
