ContiConnect™ Digital Tire Monitoring
The future of digital tire management
As a fleet manager, you take care of your vehicles and their maintenance on a daily basis. If something goes wrong, time schedules cannot be met, and your company’s profitability suffers. ContiConnect digital tire monitoring equips your fleet with real-time data on tire pressure, temperature, and mileage readings from anywhere at any time. Maximize vehicle uptime and tire life, reduce costly emergency roadside services, and save on fuel and unwanted labor costs with ContiConnect.
The benefits of digital TPMS
Properly maintained tires reduce overall driving costs, reduce your environmental footprint and give you peace-of-mind. With ContiConnect™ you always stay up-to-date on your fleet’s tire health. Manage your tire digitally with ContiConnect™ and reduce your maintenance cost while increasing uptime, tire lifetime, the overall efficiency and safety of your fleet.
Efficiency
- Extend life of the tire
- Save operational costs
- Reduce tire-related breakdowns
- Decrease total cost of ownership
Convenience
- Decrease administrative burden
- Get full tire health transparency
- Reduce time for tire demand planning
Sustainability
- Save fuel
- Reduce direct and indirect emissions
- Increase retread potential
- Optimize rolling resistance
Safety
- React to failures before they occur
- Increase safety for all road users
What is ContiConnect™?

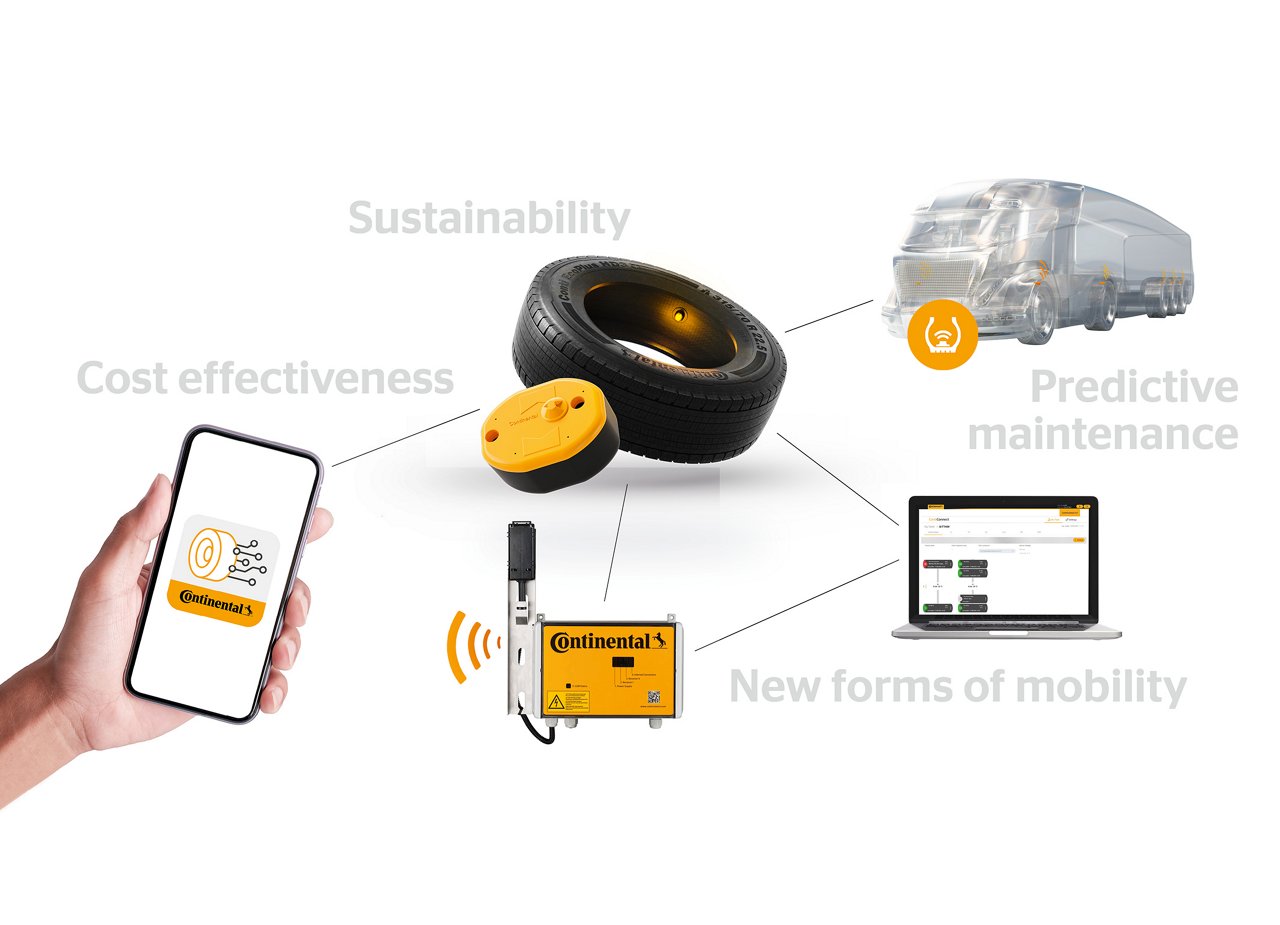

ContiConnect™ is a digital tire management platform featuring field-proven tire monitoring services such as continuous tire pressure and temperature measurment. With state-of-the-art tire sensors and latest software enhancements, it enables our fleet customers to digitally capture and monitor the mileage, tread depth and condition of all tires in the fleet.
We offer several solutions based on the needs of our customers: ContiConnect™ Live which provides tire data monitoring of multiple vehicles in real-time and regardless of their location, and ContiConnect™ Yard for monitoring tire data of multiple vehicles that return to dedicated checkpoints on a regular basis. This means that Continential has a solution for fleets of any size, for nearly any type of truck, bus, and trailer as well.
ContiConnect™ Features
We at Continental are experts when it comes to tires. But not only that! We are constantly working together with you to shape the future in transport. Our digital solutions monitor the health of your tires – so that you can focus on more important things. Our solutions are just as individual as your business and our team will find the right match for you.
- Premium Sensors
- Scalable Packages
- Web & App Portals

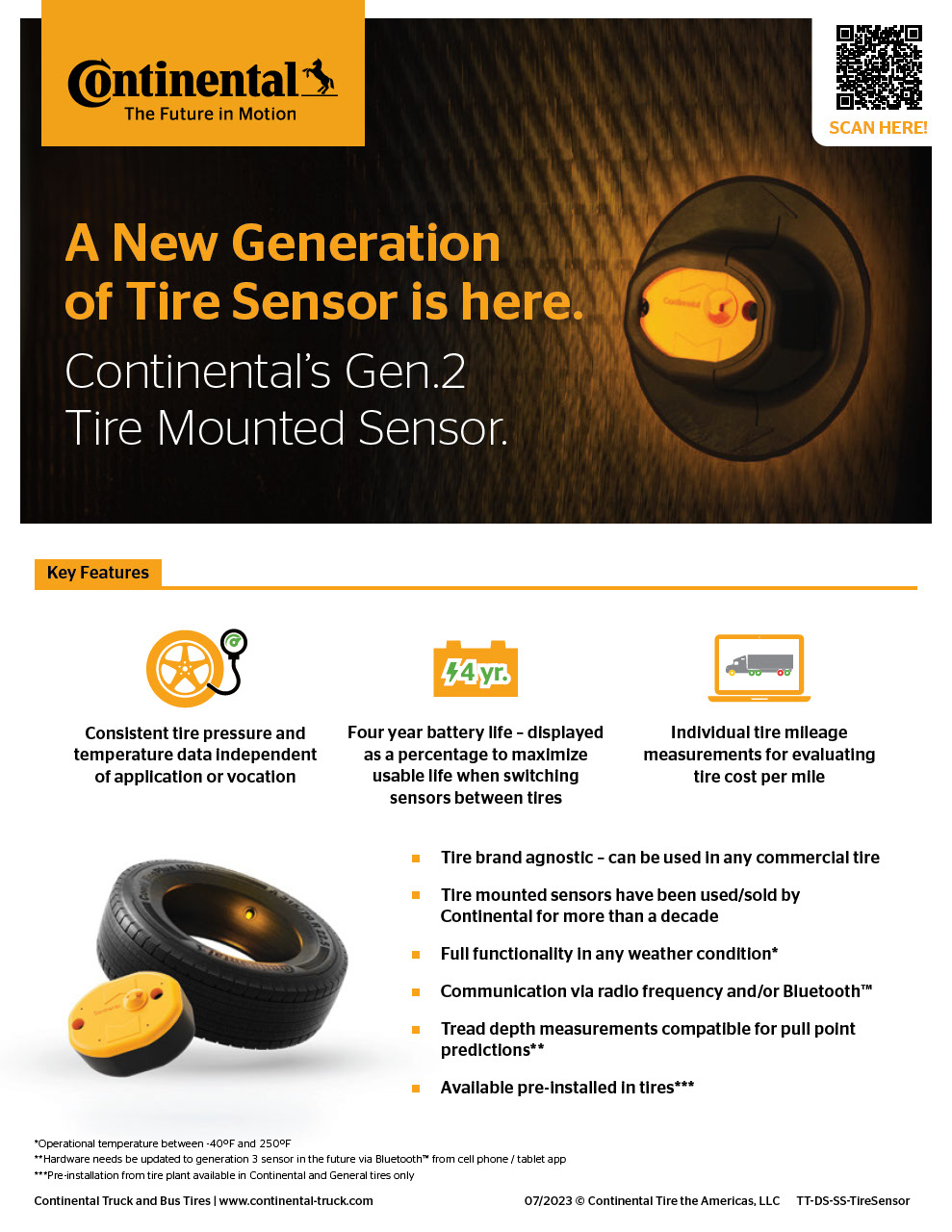

Bring efficiency to the next level and experience a new dimension of digital tire monitoring with sensors that measure tire pressure and temperature with mileage prediction. Now you can choose either tire-mounted or valve cap sensors for higher flexibility.
- Accurate tire pressure and temperature readings to prevent tire damage and breakdowns
- Sensors last between 2.5 years (valve cap) or 4 years (tire-mounted) to minimize disruptions to your tire program
- Tire-mounted sensors provide true tire casing temperature, allowing preventive actions that make your tire last longer
Continental's digital tire monitoring solutions are scalable to meet various demands. ContiPressureCheck™ and ContiConnect™ follow a modular approach with different components matched to the size of your fleet and the requirements of your business. Whether looking for individual vehicle solutions or large fleet solutions, with telematics integration, or with real-time remote monitoring, we can build a tire monitoring package to fit your needs.
Manage the entire tire life cycle via real-time web and app interfaces. The ContiConnect™ web portal and On-Site App allow fleet managers to conveniently access low pressure alerts, track data over time or view detailed reports and analytics. If low tire pressure or high temperatures are detected, you will receive an alert in order to proactively fix the problem. Each interface provides convenient access, especially for big fleets.
ContiConnect™ Packages
The right solution for you - fit to your needs
No matter the application or business you are in, we have the right solution in our portfolio to enable Digital Tire Monitoring for your vehicle type, whether it is a bus, truck, specialty vehicle or stand-alone trailer. To see all digital tire monitoring packages, click here

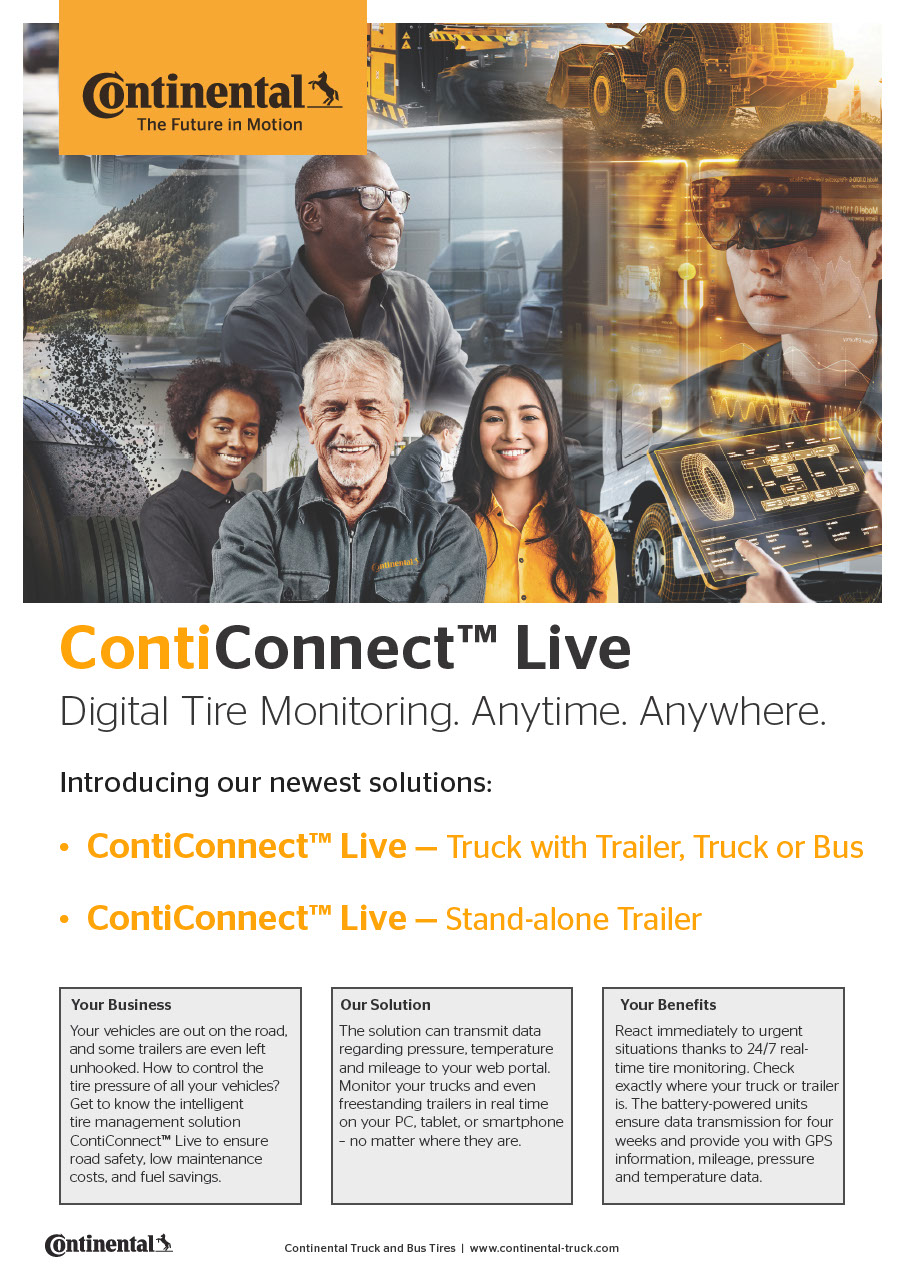

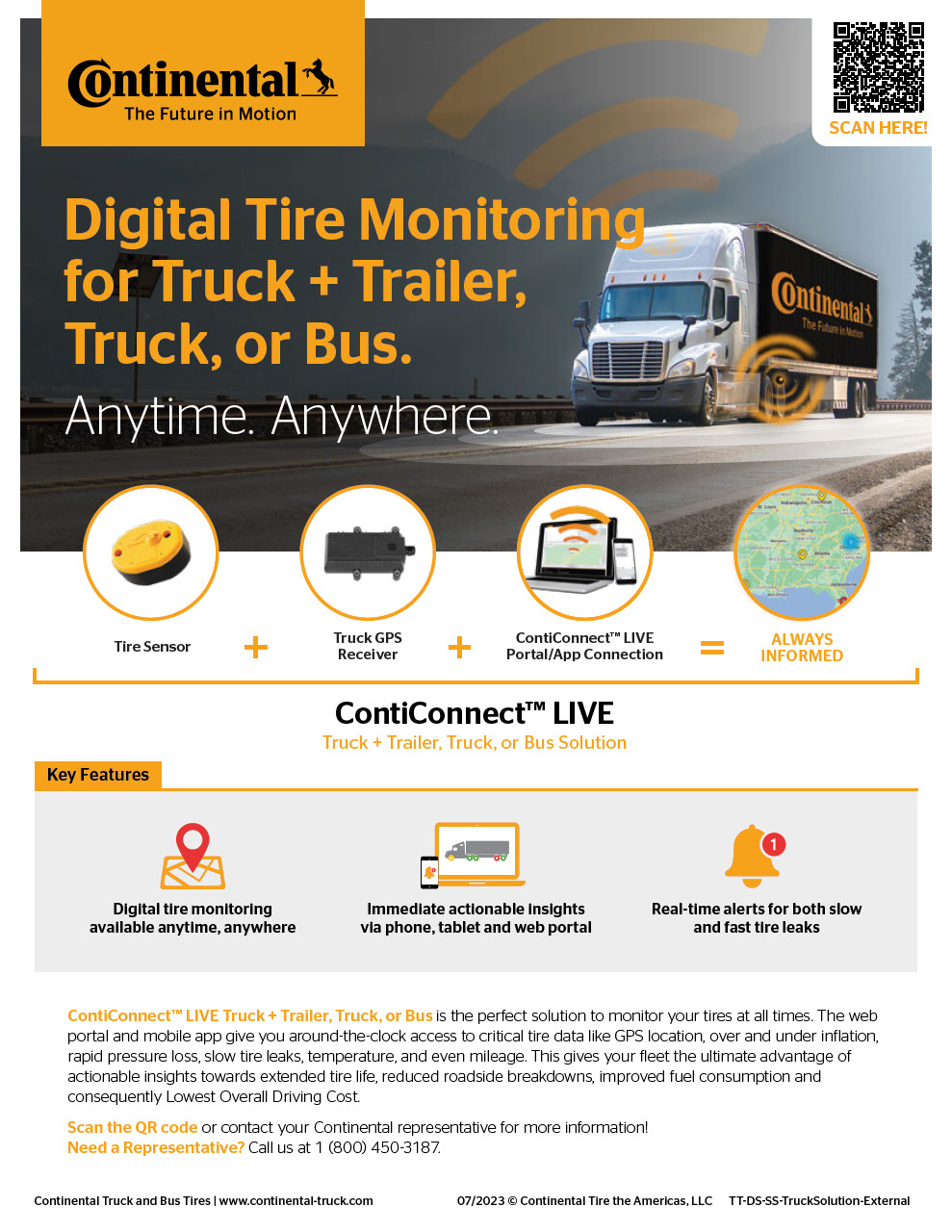

ContiConnect™ Live
Ideal for vehicles that are always out on the road, typical of many long-haul and regional fleets.
ContiConnect™ Trailer-Only
The perfect solution for trailer leasing companies or fleets that drop trailers at locations for later use.

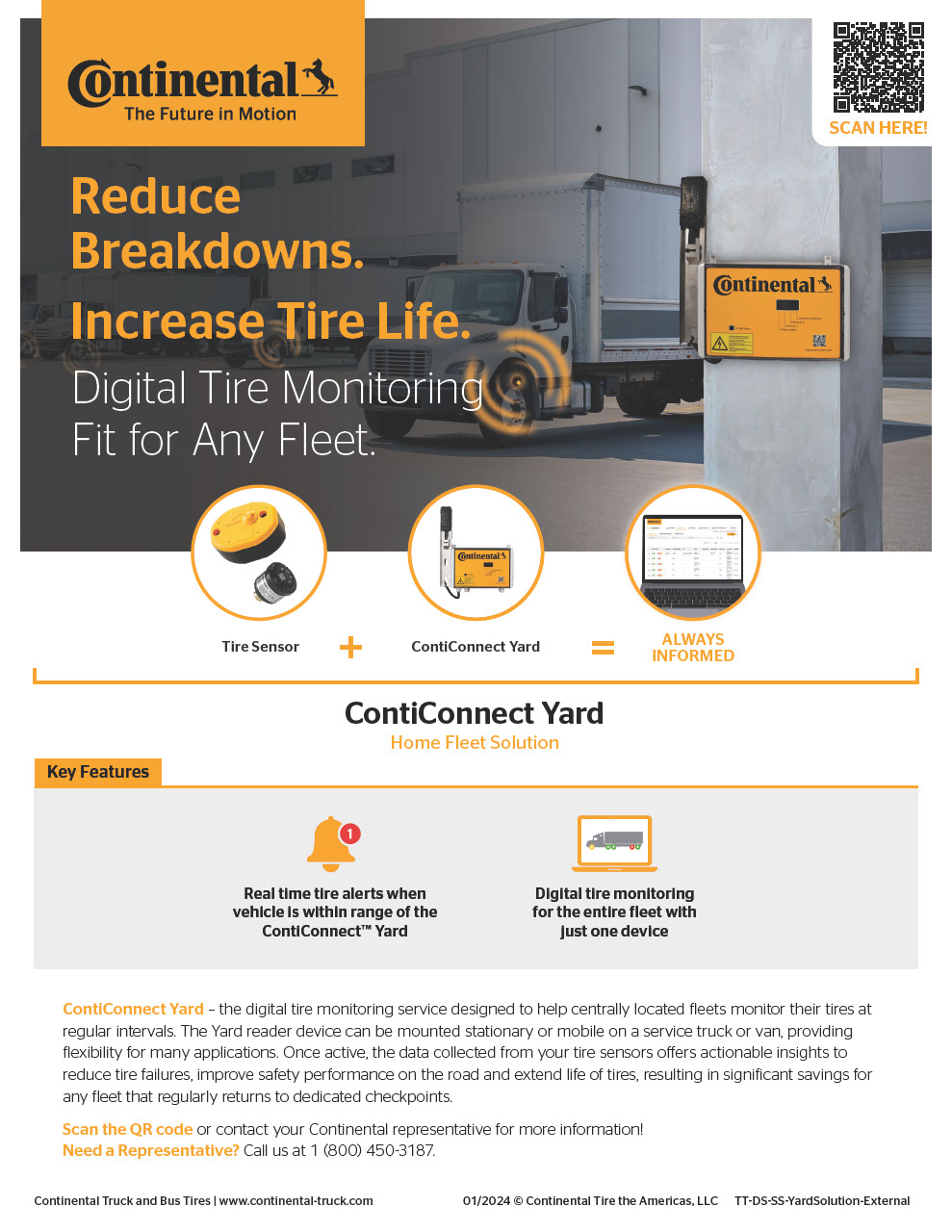

ContiConnect™ Yard
An accessible solution for domiciled fleets, such as those used in construction, urban transit, and regional transport.
ContiPressureCheck™
The ideal solution for owner-operators interested in a single vehicle solution with in-cab display.
Components
- Tire Sensors
- User Interfaces
- Yard Reader Station
- Central Control Unit
- Transmitters
- Bluetooth Dongle
- Hand-Held Tool

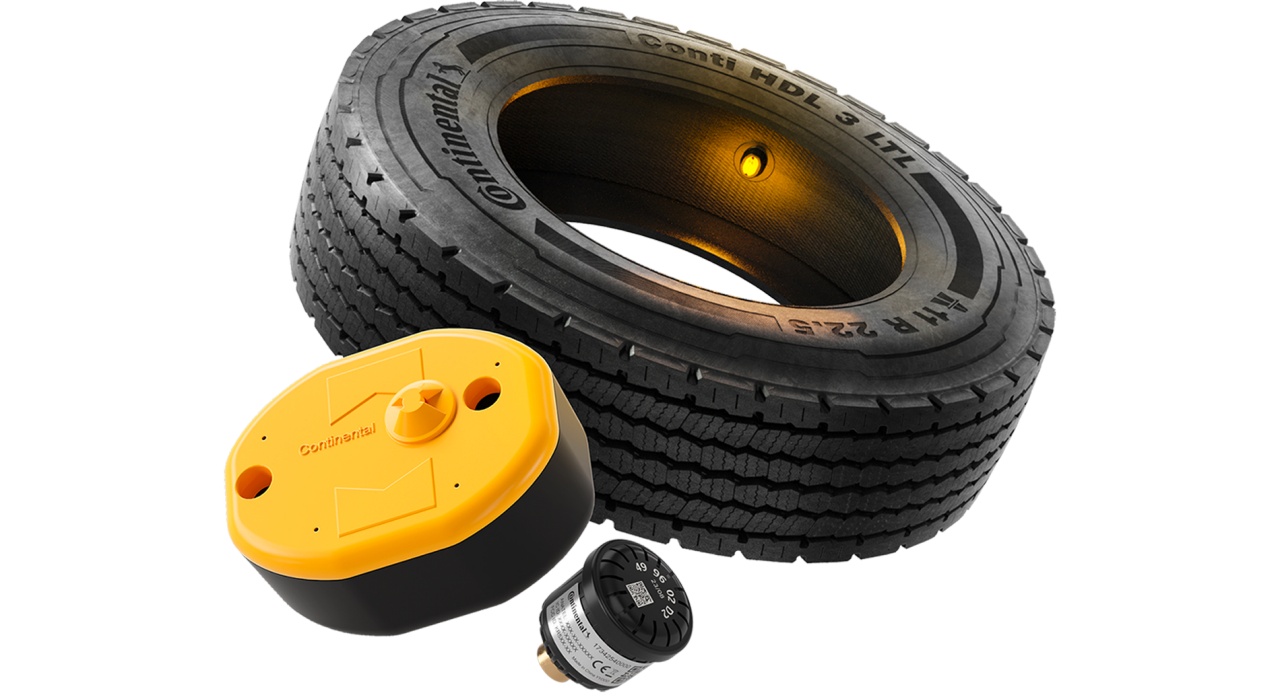

The tire sensor is mounted onto the inner liner of a tire in order to collect and transmit data. The sensor can either be retro-fitted or factory-fitted onto a tire.
- Pressure & Temperature
- Mileage estimation
- Yard Reader Mode
- Battery estimation
- Bluetooth Connectivity

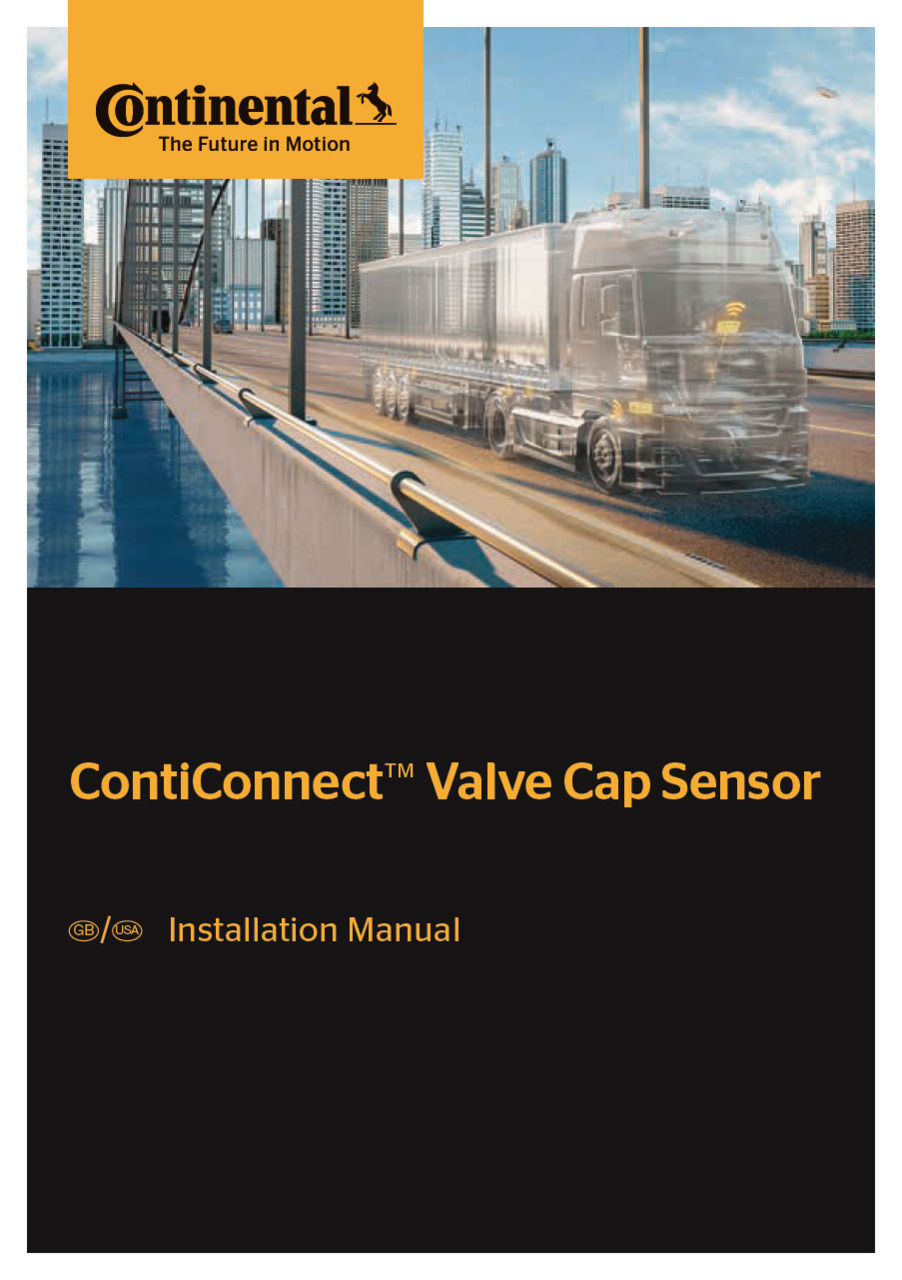

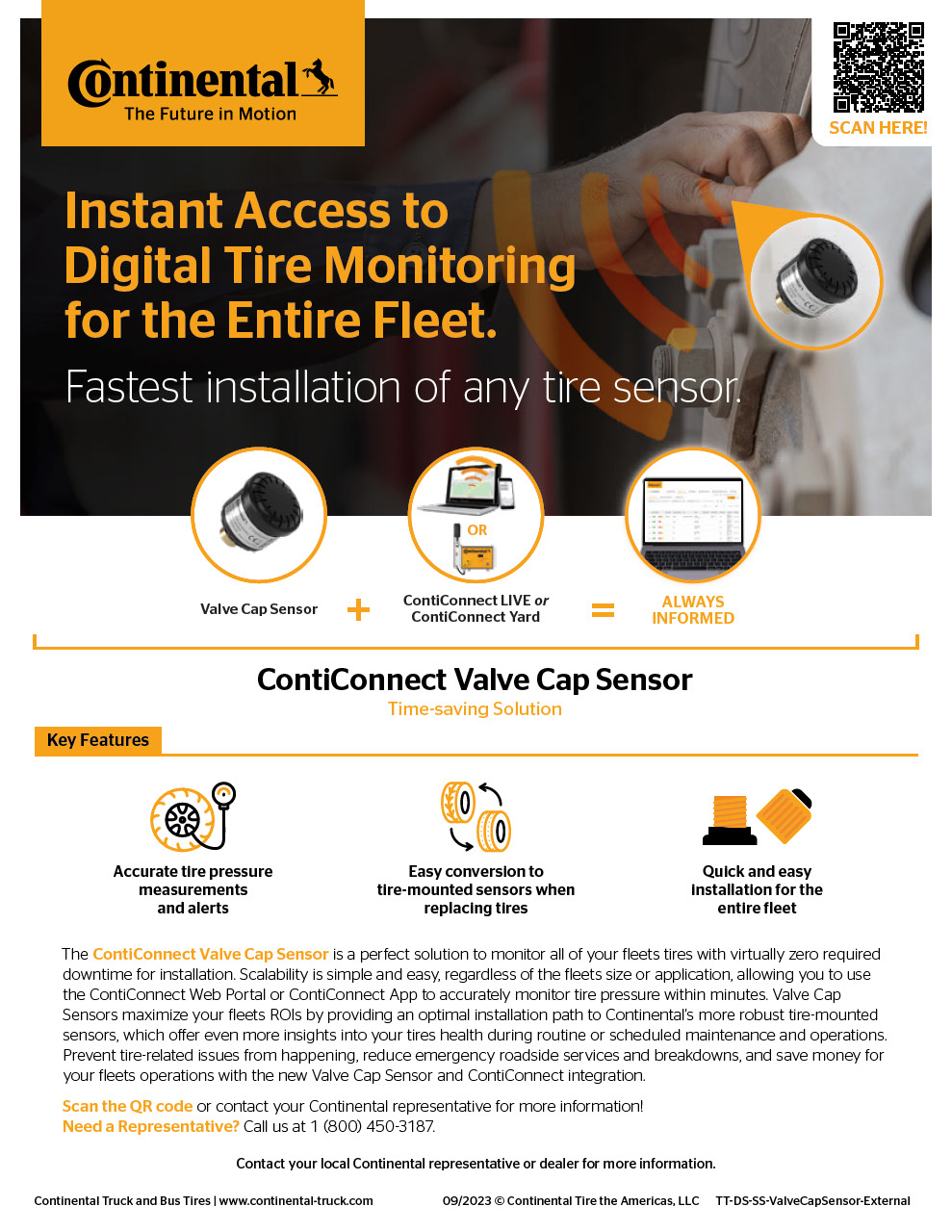

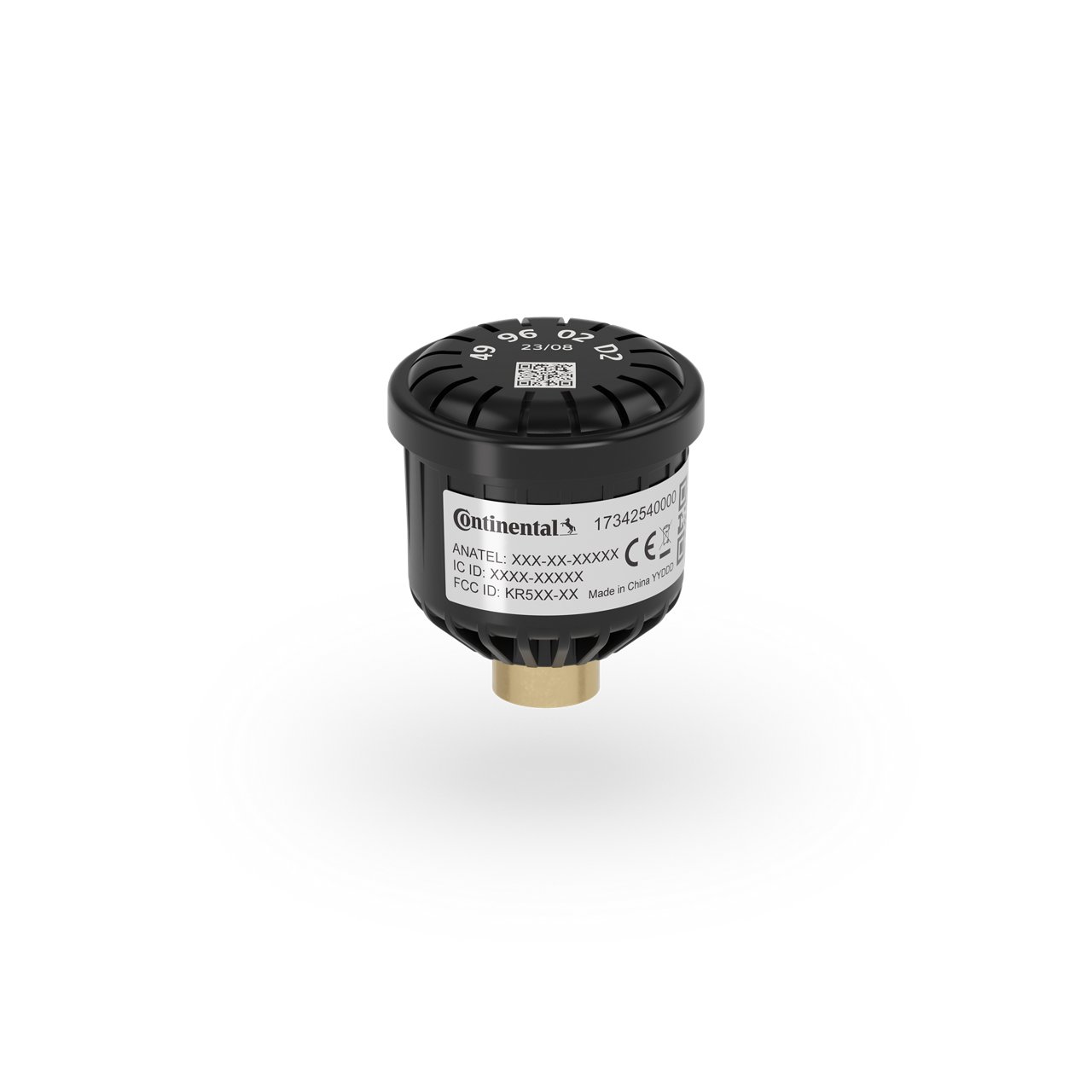

The Valve Cap sensor is mounted directly to the valve stem of the wheel in order to collect and transmit data. Continental recommends the Valve Cap is not mounted on a valve stem extension or attachment, or you may risk damage to the sensor.
- Tire pressure
- Quick and easy installation
- Low battery life estimation
Web Portal
The ContiConnect™ web portal is the interface where you can proactively monitor the tire conditions on all of your vehicles. The web portal is a browser-based application that can be accessed from any type of device.
- Browser-based web interface for access to data, statistics and reports
- Enables real-time monitoring of entire fleet’s tire status

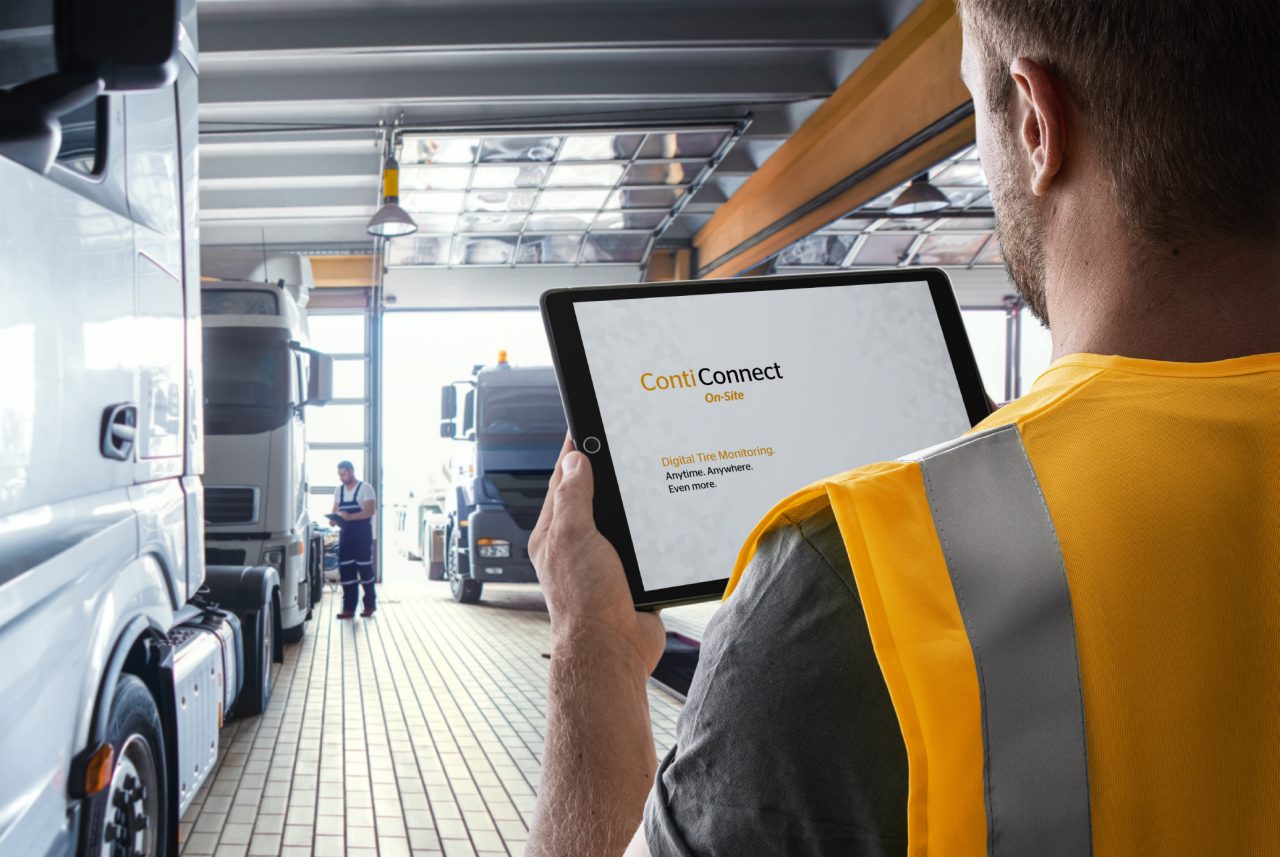

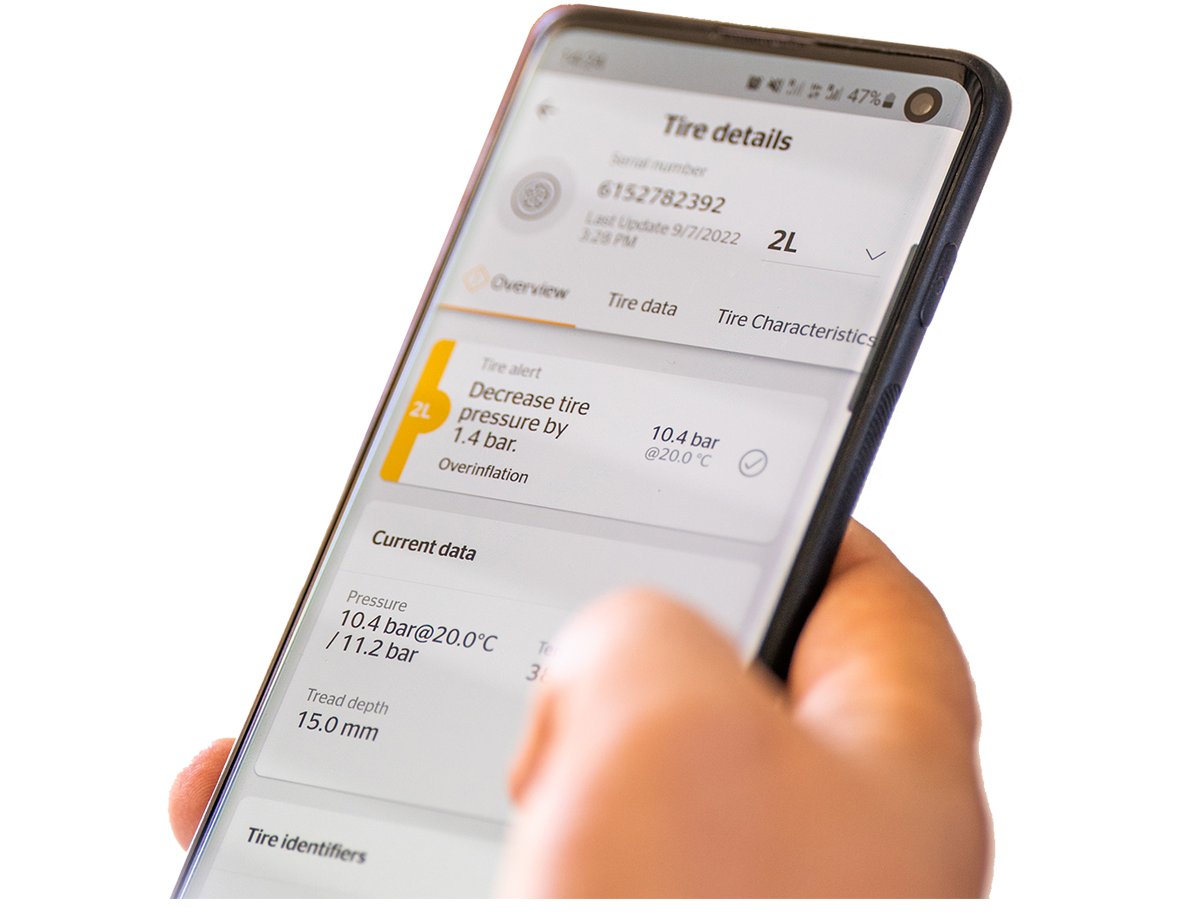

On-Site App
- Available for mobile devices and tablets
- Compatible with iOS and Android
- Create, manage and configure vehicles
- Read out sensor data via Bluetooth & transmit it to the IoT platform
- Perform vehicle / tire checks
- Receive tire alerts via push-notification
If you choose ContiConnect™ Yard, the yard reader station is the connectivity component used that receives the data from the tire sensors within a yard. The yard reader station is installed at the fleet's frequent touch points, like a washing bay, gas station or other check-points within the yard. It reads the data off the tire sensors and transmits it via cellular connection to the backend where it is analyzed and interpreted.

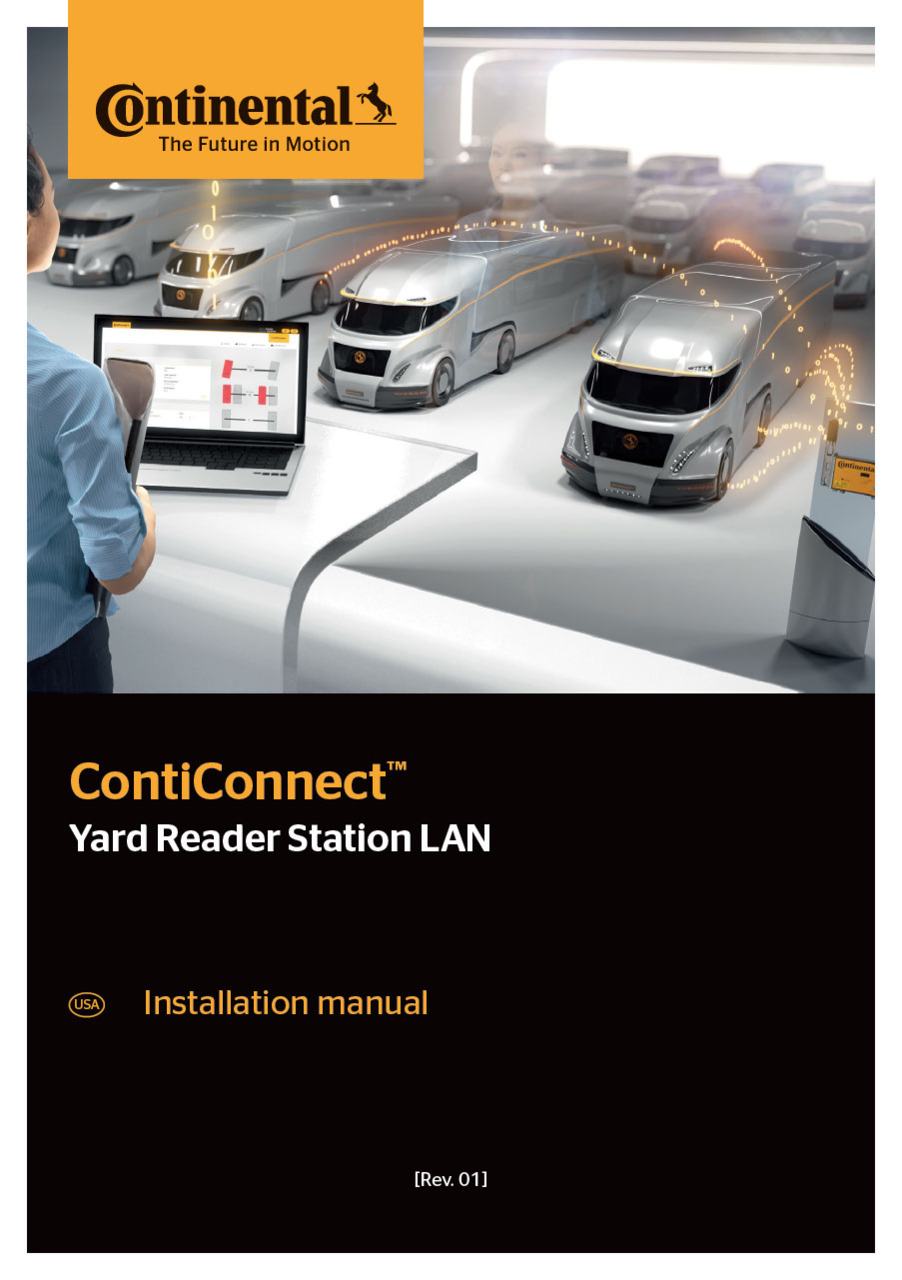

The installation manual for the yard reader station can be found here
- Receives and evaluates signals from tire sensors
- Receives signals from the tire sensors, evaluates data and processes it
- Installed in the vehicle
In-Cabin Link
- Receives signals directly from the sensors and from enabler units and sends them to the IoT platform
- For in-vehicle usage
- No Central Control Unit required
- Enabler unit can be added to forward the signals if longer distances need to be bridged
Trailer Link
- Battery-powered trailer unit (~ 4 weeks battery, battery is automatically re-charged while driving)
- Receives signals directly from the sensors and enabler units and sends them to the IoT platform
- For outside usage
- GPS-enabled
- No additional Central Control Unit required
- Enabler unit can be added to forward the signals if longer distances need to be bridged
Receiver
- Receives sensor signals and forwards them to in-cabin link or trailer link
- Power supply required
- For outside usage
- Receives the data from the central control unit and sends it via Bluetooth to a mobile device
- Mounted in the cabin and connected to the central control unit via cable
- Max. range of 10 m

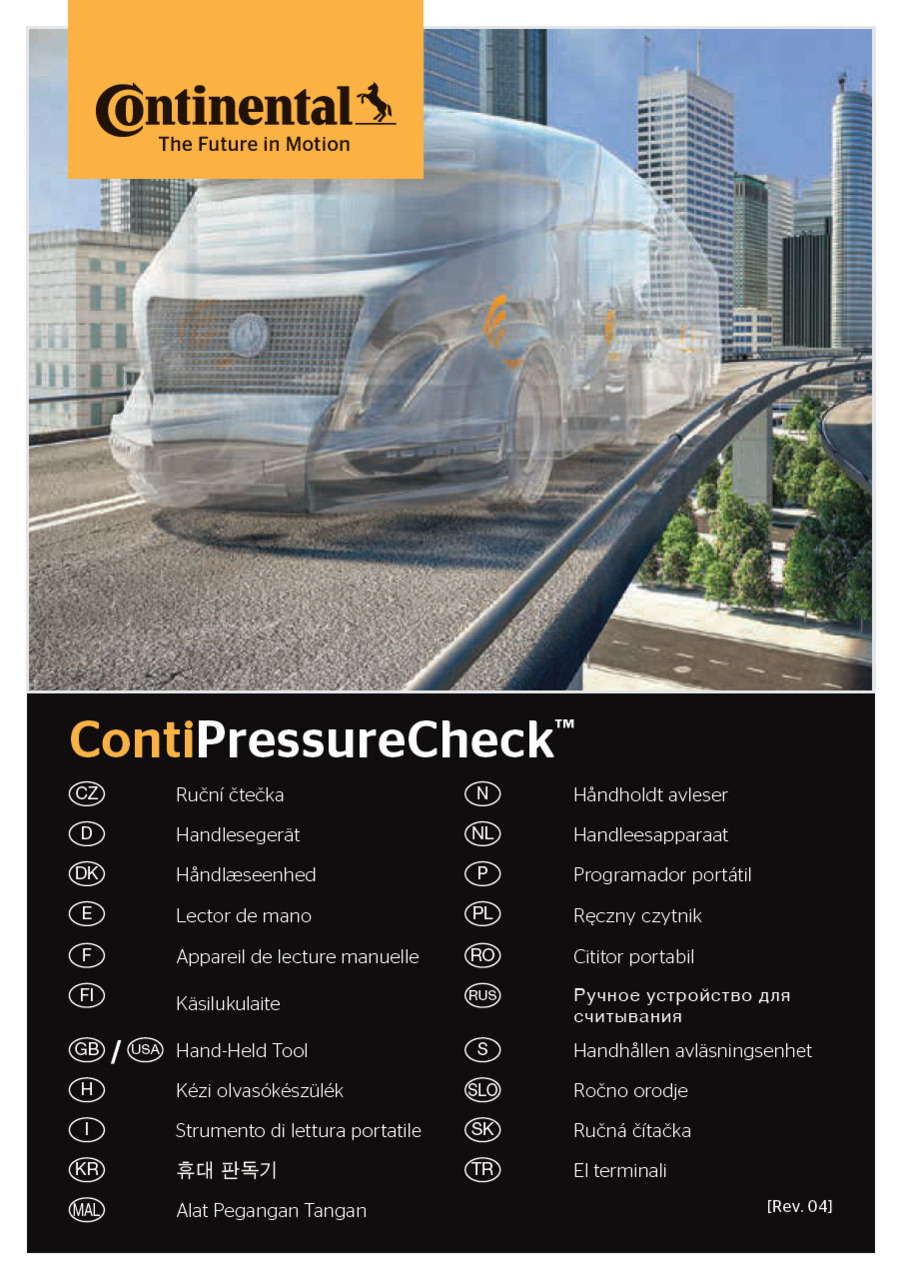

The handheld tool is needed for initialization of ContiConnect™. This component is used to assign each tire sensor to the respective wheel position of the vehicle. It connects wirelessly to the tire sensors. Further, you can also use the hand-held tool to import tire data to the web portal without a yard reader station.
- Initial configuration of entire system
- Wireless communication with tire sensors
- Synchronizes tire sensors to each wheel position
- Wired communication with CCU
Customer Benefits
Having everything under control makes life much easier – and your business smarter. With ContiConnect™ 2.0 you benefit from full transparency on the key factors of your fleet’s tires by monitoring their health. What’s really good: it’s in real time, which allows you to proactively plan services thanks to predictive analytics. Finally, a solution to increase your peace of mind.
Running a business is full of ups and downs. With the ability to remotely monitor all relevant tire parameters such as pressure, temperature and now even mileage measurement and tread depth prediction, you can significantly lower the risk of tire-related breakdowns. This helps you to generate value by increasing your vehicle’s uptime – and your asset’s lifetime – easily. Improve your efficiency by reducing fuel costs and CO2 emissions. Now, your business gets even more ups.
No business is like any other. You have different challenges, vehicles and needs. The perfect solution is the one that covers all of them. ContiConnect™ has different options to choose from – including different packages and add-ons. Pick the ones you profit the most from with our modular system. Tailor-made to your vehicle’s operations: check all data 24/7 on any device with LIVE or right after your trucks return to their dedicated checkpoints with YARD. This is digital tire monitoring for every business.
Downloads

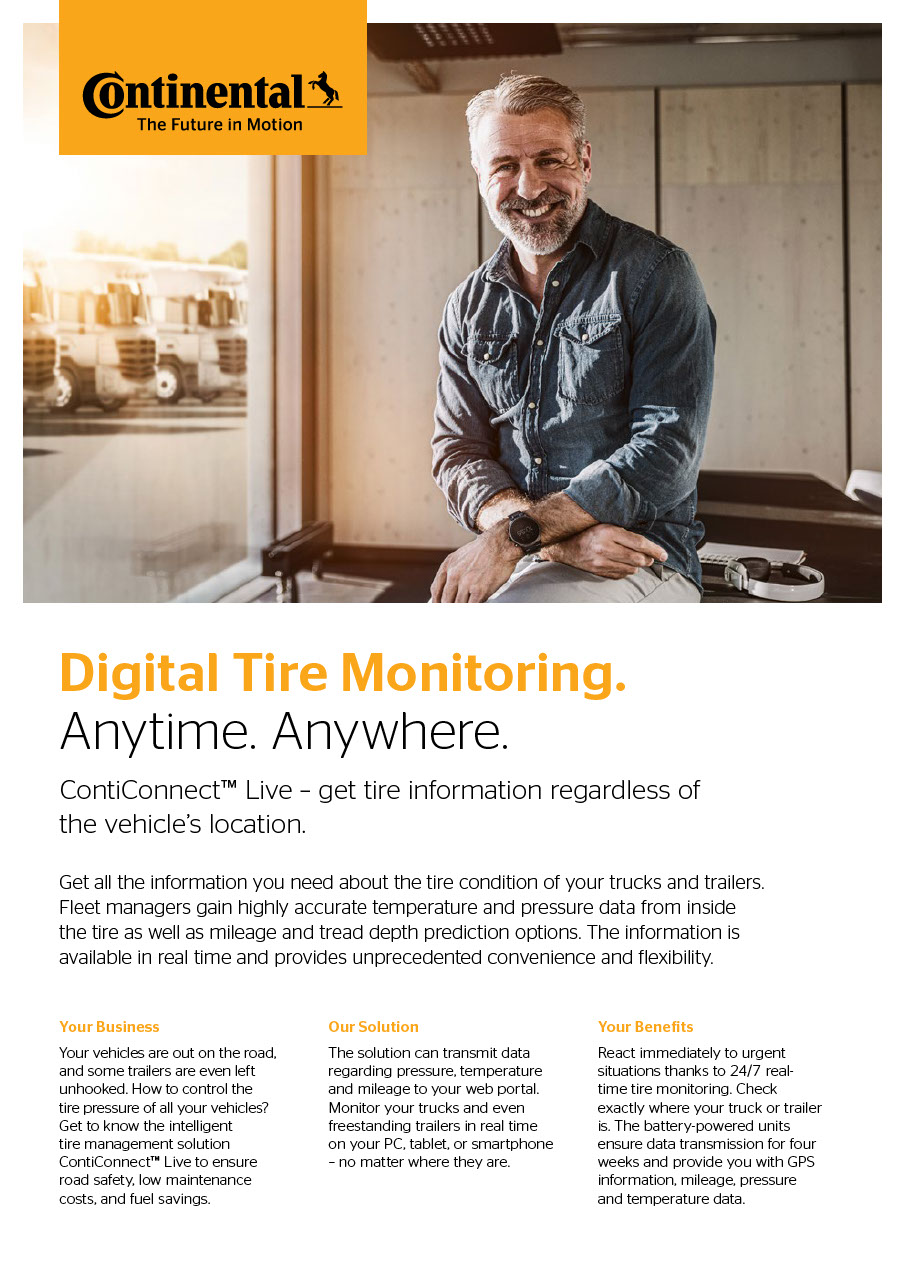

- Sell Sheets
